Availability: Made to Order
Article No.: XS7536
| Material | Steel |
| Mattress Size | 1910x910 mm |
| Frame Dimension | 2025x976 mm |
| Bed Dimension | H2095xW1040xD300 mm |
| Special Feature | Smooth Leg Movement |
| Color | Gray |
| Finish Type | Powder Coated |
| Weight Load Capacity | 500,00 kg |
| Furniture Finish | Customizable |
| Available Size | Single To Queen |
| Packing | Plastic Film Wrapping |
Categories: Wall Bed Mechanism, Fold Down Desk Hardware Kit, Murphy Bed Spring Box Kit, Storage Bed Lift Hardware, Desk Wall Bed Mechanism, Bed Lift Up System, Extended Table Slides, Double Fold Hidden Bed Mechanism, Pull Out Desk Hardware Kit, Indoor Handrail Kit, Desk Bed Kit, Sofa Wall Bed Mechanism
Tags: WallBed China, Furniture, Bedroom, Guestroom, Table, Spave Savint Solutions, Furniture Hardwares, Furniture Accessories, China Factory, drop ship hardware
| Article No. | XS7536 | Color | Gray | |
| Brand | Maxplus | Surface Finish | Powder Coated | |
| Type | Space Saving Furniture | MOQ. | 12 sets | |
| Folded | Yes | Sample | Available | |
| Warranty | 10 Years | Packing | PP Film Wrapping | |
| Function | Multi-functional | Mattress Size | 1910x910 mm | |
| Material | Steel | OEM/ODM | Acceptable |
| Available Sample | Customization | |||||
| Maximum Order: | 1 sets | Customized Logo | Customized Packing | |||
| Sample Price | Regular Price | Min. Order: | 150 sets | Min. Order | 150 sets | |

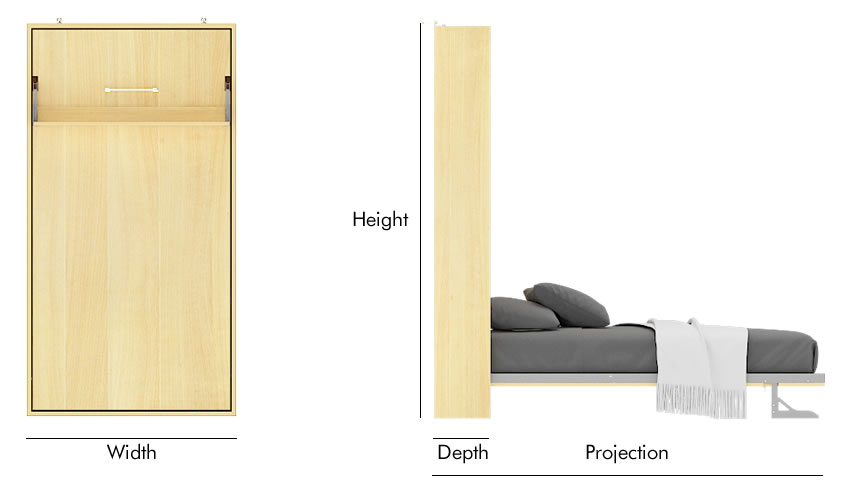

| Article Code | Mattress Size | Bed Measurement | ||||
| Width | Height | Depth | Projection | |||
| XS20090 | Single | 2000x900 mm | 1020 mm | 2175 mm | 300 mm | 2200 mm |
| Available Customized Size | ||||||
| XS7536 | Single | 1910x910 mm | 1030 mm | 2095 mm | 300 mm | 2120 mm |
| XS7539 | Twin | 1910x990 mm | 1120 mm | 2095 mm | 300 mm | 2120 mm |
| XS8039 | Twin XL | 2030x990 mm | 1120 mm | 2215 mm | 300 mm | 2240 mm |
| XS8042 | King Single | 2030x1070 mm | 1200 mm | 2215 mm | 300 mm | 2240 mm |

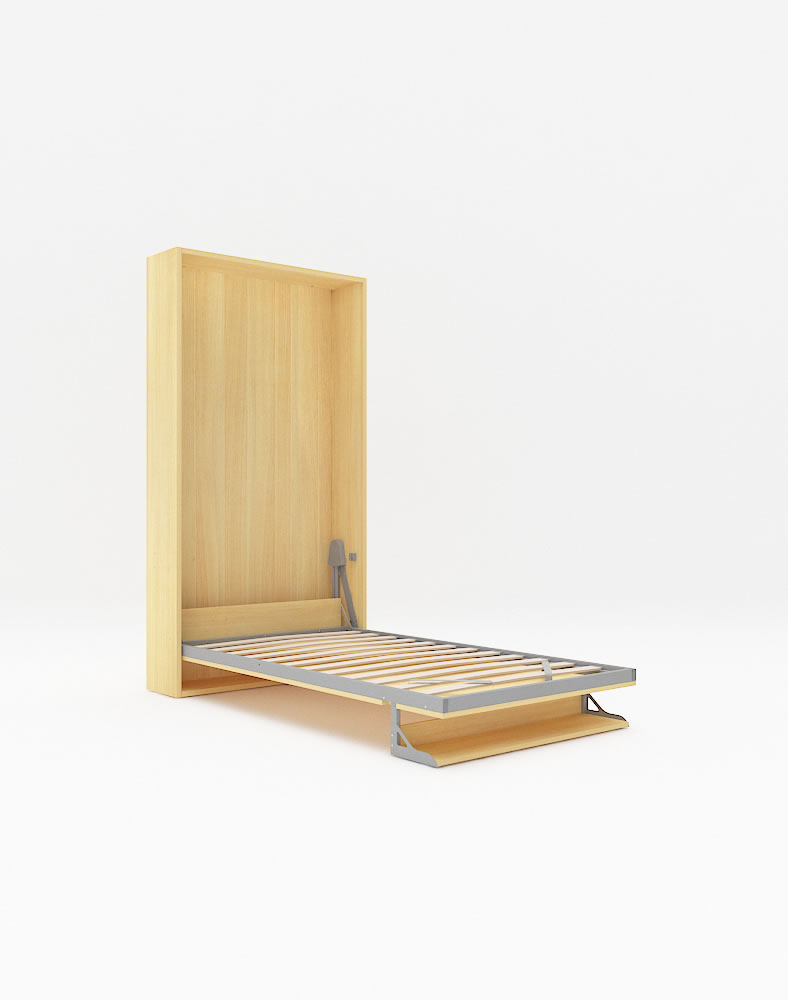

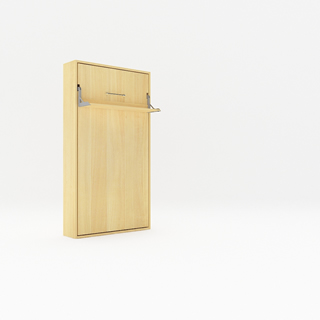

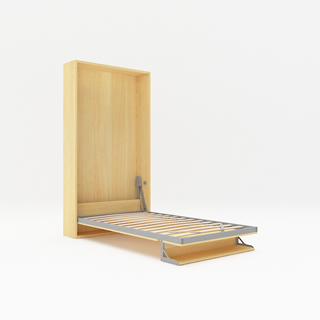

The framed wall bed mechanism is the high quality multi-functional solution for space saving on the market. It's one of the most
popular Murphy bed kit.

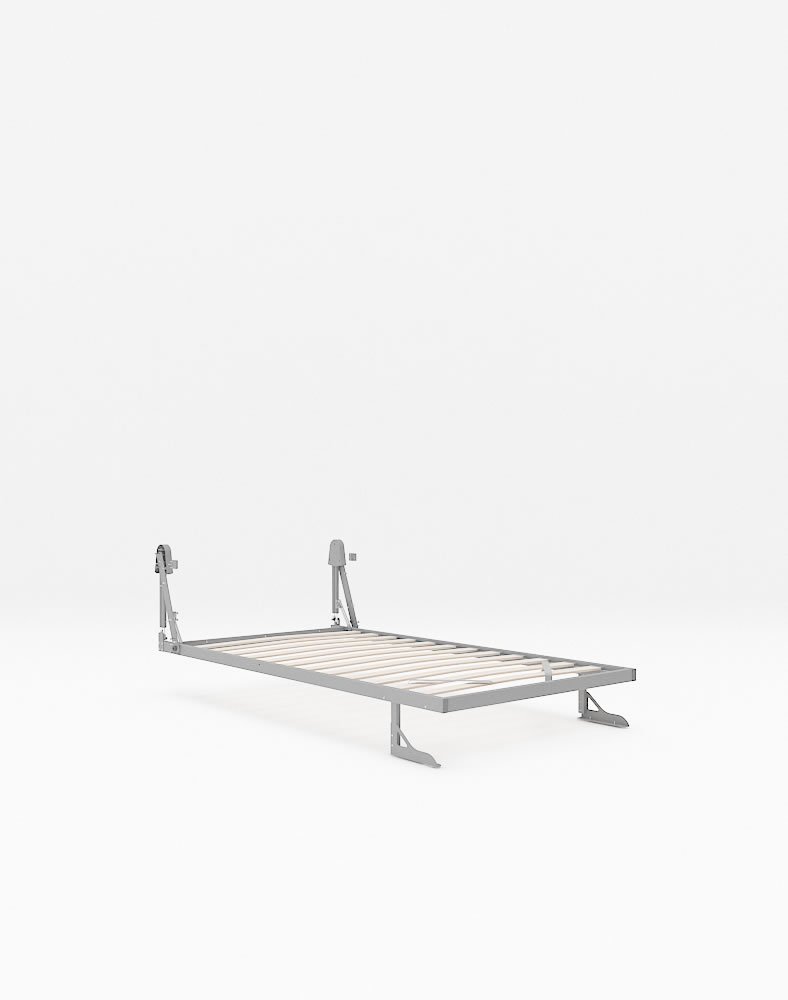

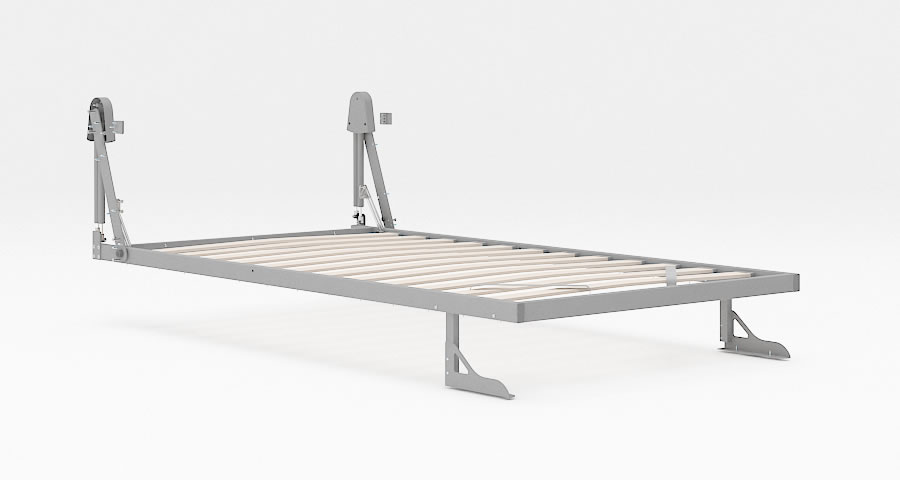

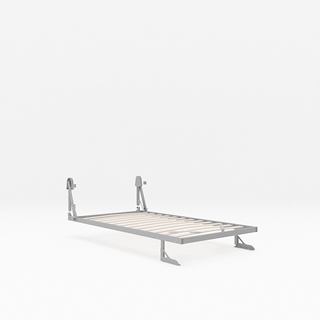

---- Welded frame with sprung slats, weight load capacity: 500 kg
---- Leg movement synchronized the movement of the bed
---- Smooth self-fold down after opening over 30 degrees
---- Easy operation, safe, stable and durable
---- Customized sizes are available
| Wall Bed Mechanism | 1,000 sets |
| Packing & Gross Weight | Wrapping(1 set): 2040x990x70mm; 25,00kg |
Quantity (sets) | <300 sets | >300 sets | ||
| Lead Time | 25 days | to be negotiated | ||||
| Container Loading Capacity | 20ft | 200 sets | 40ft | 460 sets |
**** It is MECHANISM KIT ONLY, not including the cabinet and mattress ****
